MECM Product Document

MECM Management Face

The MECM management side mainly provides edge nodes, APPLCM registration, and application distribution deployment capabilities.

The V1.1 release features are as follows:

1.Add visitors, tenant, and administrator roles, the administrator can register and delete, the tenant can apply sync, distribute, deploy operations, visitors only browse rights 2. Add application store registration function, support administrator add register application store 3. Add application sync feature, support application from app store to APM sync

User Guide

! ! ! Note: Due to client and service-side protocol issues, user access may present a certificate exception, e.g. if there is a data acquisition exception, it is recommended that the browser visit https://mecm.edgegallery.org:30202 and then proceed to the MECM interface refresh to resolve the problem in the next version.

1.Overview: Map Area & Details Demo (Node and KPIs, MEP Capacity and Hardware Capacity), MEP Details

1.1 Map & Details: Click nodes on the map, display nodes and KPIs, MEP capabilities, and details of hardware

1.2 MEP Details: Hit Management button, Jump to MEP Details interface

2.Application management: application package management, application instance management

2.1 Application package management

Integrated application synchronization, distribution and deployment function.

2.2 Application Instance Management

Integrated application instance list, here you can view the deployment status and details of the current instance, and perform rule configuration, as well as the failure reason view and other functions Rule configuration->DNS rule configuration Rule configuration->Distribution rule configuration Rule configuration->Diversion rule configuration->Filter rule configuration Rule configuration-Diversion rule configuration-interface information configuration

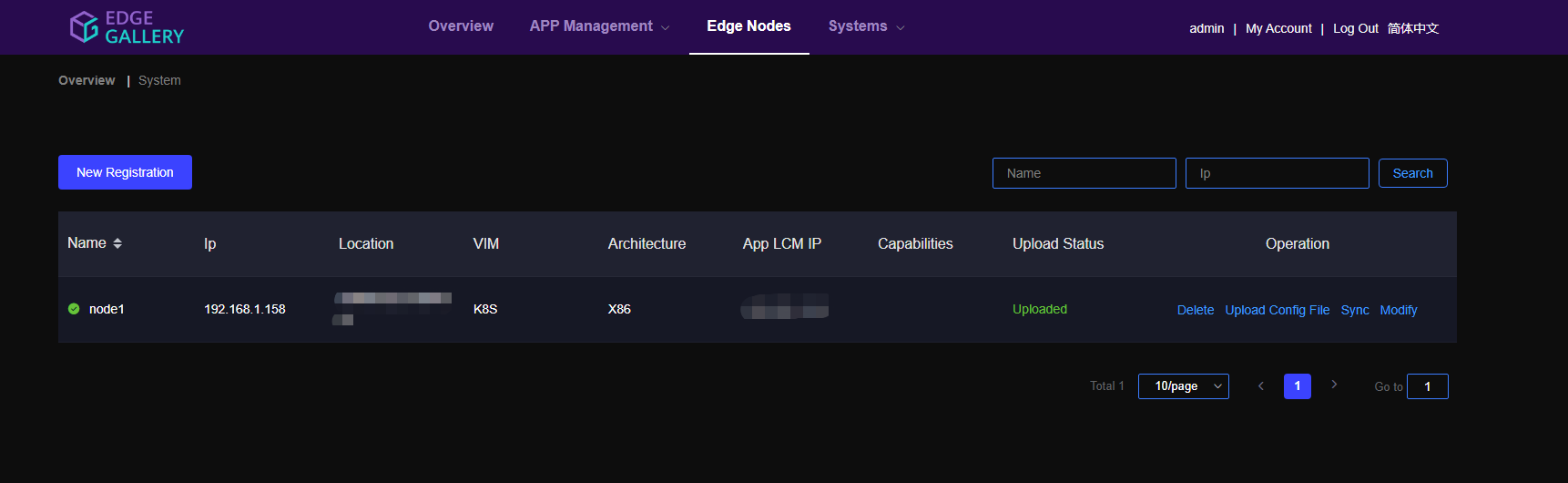

3.Edge nodes: edge node list, edge node registration, upload k8s config documentation

4.System Management: APPLCM Registration, APP Rule MGR Registration, Application Warehouse Registration

4.1 MEPM registration
4.4 Application Warehouse Registration

The new features of V1.5 version are as follows:

OpenStackNode resource management function,Registered edge nodes can be checked through the resource management interface(OpenStack)Perform basic management operations
